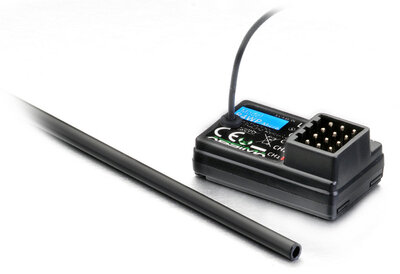

The RUDDOG RR482V2 is a powerful 2.4GHz 4-channel receiver specially designed for compatibility with Sanwa radio controls with FHSS-4 and FHSS-3 transmission. The RR482V2 is the ideal choice for anyone looking for an inexpensive but high-quality alternative to their Sanwa remote control. The RR482V2 is compatible with the Sanwa remote controls M17, MT-44 and others*.

Main Features:

• Sanwa compatibility: works seamlessly with selected Sanwa remote controls
• FHSS-4 and FHSS-3 support: Ensures smooth operation in SHR or SSR mode
• Compact and lightweight design: Measuring only 18.5 x 20.5 x 28.0 mm and weighing only 5 g, the RUDDOG RR482V2 fits in most vehicles.
• Tested on the race track: Extensively tested at national and international events, including prestigious events such as the EOS.

Specifications:

• FHSS-4 and FHSS-3
• SHR and SSR mode
• Dimensions: 18.5x20.5x28.0mm
• Weight: 5g
• Voltage input: 3.5-8.4V

*This receiver is compatible with the following Sanwa Transmitters:

• Sanwa M17
• Sanwa M12S
• Sanwa M12S-RS
• Sanwa M12
• Sanwa M11X
• Sanwa MT-44
• Sanwa MT-4S
• Sanwa MT-4
• Sanwa MT-S
• Sanwa EXCES ZZ
• Sanwa EXCES Z

The RUDDOG RR492 is a powerful 2.4GHz 4-channel FH5 receiver that has been specially developed for compatibility with selected latest generation Sanwa remote controls. The RR492 is the ideal choice for anyone looking for an affordable but high quality alternative Receiver for their Sanwa remote control. The RR492 is compatible with the Sanwa transmitters M17, MT-5 and MT-R and supports both FH5 and FH5U.

Key Features:

• Sanwa Compatibility: Seamlessly works with select Sanwa radio systems.
• FH5 and FH5U Support: Ensures smooth operation and state-of-the-art Transmission.
• Compact and Lightweight Design: With a size of only 18.5 x 20.5 x 28.0 mm and a weight of only 5 g, the RUDDOG RR492 fits in most vehicles.
• Proven on the Track: extensively tested at national and international events, including prestigious events such as the EOS.

Specifications:

• Dimensions: 18.5x20.5x28.0mm
• Weight: 5g
• Voltage Input: 3.5-8.4V

This receiver is compatible with the following Sanwa transmitters:

• Sanwa M17
• Sanwa MT-5
• Sanwa MT-R

Sanwa 2.4GHz Replacement Receiver Antenna

Sanwa Belt Hook Black M12, MT-44

Sanwa Black Servo Pin Housing

Classic Sanwa radio carrying bag for different types of radios. Protect your radio in style while traveling or during long racing weekends!

Features:

• Shoulder strap is included
• From shifting a partition according to contained item, wheeler or stick radio or other items can be contained
• Increase of width, 10 mm compared with Multi-Bag
• Color is changed from black to red at the fastener area
• Dimensions (external): 320 x 260 x 150 mm

THE FASTEST RESPONSE OF M12S IS PORTED!
YOU CAN GET THE FASTEST RESPONSE WHICH
HAS ACHIEVED THE TRIUMPHS IN WORLD CHAMPIONSHIPS.

NOT ONLY HIGH RESPONSE BUT ALSO EXCELLENT LINEAR MOVEMENT
INCREASE THE DRIVING STABILITY IN THE FINAL MATCH.
HAVING NO EQUAL TO OTHER MODELS.

[NEW FEATURES]
●Telemetry Mixing ●Template ●Vibrator ●Mode Select ●Throttle Slow ●Life-Battery Compatible ●Earphone Jack
●Ackerman Steering ●Racing Mode (Enhanced) ●Timer/Alarm (Enhanced) ●CODE10/Telemetry Assignment
●CODE AUX NAMING

[OTHER FEATURES]
●FSTN Large full dot LCD (128x256) ●Menu Selector ●ST, TH Spring adjustment ●Logger
●Feeling ●PC Link ●Monitoring ●Racing Mode ●Car Type Select ●CODE AUX
●Cross Movement Function System ●Bind ●Model Memory(50 models) ●Model Name(14 letters)
●LCD Contrast ●RF Mode Setting (FH4/FH3) ●Response Mode Setting(NOR/SHR/SSR)
●Model(Select/Copy/Clear/Sort) ●Vibrator ●Key Assignment (SW/TRIM/DIAL/LEVER)
●Buzzer(Selectable Scale/Volume) ●AUX Type Setting (AUX/AUX1/AUX2) ●Point AUX
●MOA AUX ●4WS AUX ●Trim Type(Center/Parallel) ●User Name(14 letters) ●Information
●Log(REC/RPM/VOLT/TEMP1/TEMP2/ST POINT/TH POINT/RX MODE) ●Battery Alarm
●EPA ●Trim/Sub Trim ●Servo Reverse ●Fail Safe (Radio Wave/Battery) ●Boost Menu
●Timer(Lap/Interval 1/Interval 2) ●Dual Rate(ST/TH/BR) ●Curve(EXP/ARC/CRV) ●Point Curve
●SPEED ●Anti-Lock Brake ●Brake Mixing ●TH Hold ●Ackerman Steering ●Compensation Mixing
(C-MIX1/C-MIX2) ●Safety Link ●Direct Model Select ●Language ●Customized menu ●Throttle Type
●Offset ●CH Set ●Calibration: Ex-Volume Adjustment (ST/TH/LEVER)
●Compatible Receivers: RX-482, RX-481, RX-472, RX-471 Dual-ID, RX-471W, RX-471, RX-462,
RX-461, RX-451R, RX-451, RX-381, RX-380

[SSL(SANWA Synchronized Link) Sysytem]
SANWA NEW SSL SYSTEM
●When used with compatible RX-472, RX-482, Super Vortex Series, SV-Plus Series, the setting of ESC etc. by Transmitter is available through SSL functions while driving.
●Since the setting can be done without the stop of car, the detailed adjustment in accordance with Race conditions
is available without interruption of Intervals and the change of machine conditions.
[Response of Telemetry System]
●It is often said that telemetry system reduce response speed. However, SANWA Original Data Processing and Algorithm Design makes Telemetry possible without response speed reduction.
Our Excellent Telemetry System has no response speed reduction.
●With our telemetry system, the precious race data will help the next race setting and driving.
[Response Mode]
●Please do not use Analog Servo for SHR mode or SSR mode.
If analog servo is used for SHR mode or SSR mode, the servo will be broken and will not work.
Digital servo (SRG series, Digital ERG series, SDX series) can be used both for NOR mode and SHR mode.
●SSR mode can be used only by SRG series servo.
●In SHR or SSR mode, BL-RACER, BL-FORCE, BL-SPORT, F2000, F2200, F3000, F3300, SBL-01, SBL-02 and SBL-03CR do not work. Please make sure to use NOR Mode for them.
●SV-08, HV-10, HV-12, F2500 can be used for both NOR and SHR Mode.
Please use NOR mode for the above ESC.

[System Programming]
●・PC-LINK MANAGER3 for M12S/EXZES ZZ Application Manual(PDF)
●・PC-LINK MANAGER3 for M12S/EXZES ZZ Application Software(zip)
*Only for M12S / EXZES ZZ
Please use PC-LINK MANAGER2 for M12/EXZES Z

●・Programming Version Upgrade for EXZES ZZ(Standard)・・・・・・v401205(zip)
※The above upgrade is only for EXZES ZZ.
M12S or M12 or Exzes Z cannot be upgraded.

Main features:

• Ultra Response Mode (SUR) New Transmitter system "FH5" makes new record of the World Fastest Response.
• Color Display and Touch Panel are easy to control.
• Light weight (about 510g) and high rigidity than M12S
• Steering and Throttle Position Optimization and Steering Swing Adjust Function
• Detachable Throttle Unit is available to change spring by drivers (World First)

Product description:

• Installed "Fine Color Display (480x320)
• Touch Pad can be smooth & quick to set
• Installed Detachable Throttle Unit is available to change spring by drivers
• Steering and Throttle position can be optimized without off set bracket. Improved Steering Unit can be increased case strength during operation
• Improved Steering Unit is available to be steering swing adjustment
• Battery recharge port is installed and battery can be check when recharging
• Compatible with Micro SDHC Card is available to manage firmware update, model data, and Telemetry Log
• Installed Multi-Setting Function is available to set PGS servos to connect with transmitter
• Compatible with SSL CODE10 and CODE5 function is available to set PGS servos and SUPER VORTEX Gen2 PRO without any connection
• Installed tilt carrying handle can be holding and easy to put in the box
• Steering Unit can change position for lefty
• Detachable Strap Hook is placed on ideal position for drivers
• Succeeded Full Adjustable Trigger can be fittable for individual
• Optional Large Steering Wheel in package is available to be fine operation
• Available to customize by grip pad, brake trigger, angle spacer, and variable spring in package
• Installed Screen Reader Function is available to sound Lap Time and Telemetry Data and installed headphone jack can be used
• Quick and easy to set as model data and other setting by Quick Set Up Wizard

System features:

• Dull-dot Color LCD(480ｘ320)
• Switchable driving position(Left/Right)
• Touch Pad
• Built-in Antenna
• ST,TH Adjuster
• Detachable Fully Adjustable Throttle Unit
• Feeling
• Safety Link
• Racing Mode
• Setup Wizard
• Dual Rate
• End Pint Adjust
• Anti-Lock Brake
• Servo Speed
• Offset
• Trim/Sub Trim
• Servo Reverse
• Curve
• Fail Safe
• Timer
• Lap
• CODE AUX
• Model Memory
• Model Name
• Model (Select/Copy/Clear/Sort)
• Direct Model Select
• RF Mode (FH5,FH4,FH3)
• Response Mode (SUR/SSR/SHR/NOR)
• Bind
• Log(REC/RPM/VOLT/TLM1/TLM2/ST Point/TH Point/RX Mode/Reading Function)
• Servo Monitor
• Key Assign
• Vibrator
• AUX Type
• Trim Type
• TH Type
• Calibration
• Custom Menu
• Mechanical Rudder Angle Adjustment
• Large Steering Wheel included
• Large/Small Grip Pad included
• Compatible RX: Telemetry-compatible(RX-491, RX-482, RX-472, RX-47T, RX-462, RX-461) , Non-Telemetry-Compatible(RX-481,RX-481WP, RX-471 Dual ID, RX-471W, RX-451R, RX-451, RX-381,RX-480)

RX-493 receiver:

• Compatible with FH5/FH5U (M17)
• Compatible with SXR Response Mode
• COAXIAL ANTENNA with Antenna Pipe Bring More Stable Working in Any Situation
• Voltage: 4.8 - 7.4 V and Water Proof (as IPX4)
• Compatible with SSL Function

Sanwa M17 Radio + RX-493 Receiver - 101A32473A

Sanwa M17 Rubber Cover of Charging Port

Sanwa M17/MT44 Alu Hard Carrying Case Sanwa M17 and MT44

MT-44 Radio Set - w/RX-482

Introducing the all-new MT-44 4-channel 2.4GHz radio system. The follow-up model of the popular MT-4S offers a completely new case design with a large white back-lit display and an adjustable handle that can be popped out for transpiration and retracted for normal use. The telemetry transmitter offers a range of functions such as ambient temperature display, MicroSD card support for extended model memory, and it makes use of lightweight AAA 3-cell or 1S LiPo batteries for an ultra light weight. The MT-44 supports Sanwa’s SHR and SSR modulation and it is compatible with most FH4T and FH3 receivers. Other features include chargeability via an USB port and the radio system will become available including a range of receivers such as the RX-482, RX-481, RX-472 or RX-471.

- HIGH RESOLUTION DISPLAY
The same detailed dot as M12S enables so clear display.
Three kind of telemetry data can be displayed simultaneously because of gray scale display.
- BEST POSITION FOR STEERING / THROTTLE
Steering/Throttle is arranged in the best position for operation.
Drop Down is used as standard postion.
- THREE AAA BATTERIES
Three AAA batteries allows to be not only compact but also light.
- USB CHARGE
When used with optional Li-Po 1 cell battery, weight become lighter and it can be changed from USB input.
 ¦SYSTEM: 2.4GHz FH4T/FH3 ¦4CH ¦Transmitter: TX-471 ¦Receiver: RX-482
[New features]
?Movable Carrying Handle ?Quick Setup Wizard ?Safety Link ?Racing Mode ?Customized Menu ?Micro SD card-compatible ?Telemetry Switch ?Clock ?Circumstance Temperature Display ?CSV Output for LOG data ?CODE 10-compatible (Naming support) ?Simultaneous three telemetry data display ?Three AAA Batteries ?Li-Po 1 cell-compatible (USB change support)
[Other functions]
?Large full dot LCD monitor ?Wight LED back light ?Full adjustable trigger ?Telemetry function ?Built-in antenna ?Multi Menu Selector ?ST/TH Tension Adjuster ?Dual Rate ?End Point Adjuster ?Anti-lock Brake ?Servo Speed ?Offset ?Trim/Sub trim ?Servo Reverse ?Curve (Exponential /Adjustable Rate Control) ?AUX1 (Movement type for 3CH. it's the same as MT-4S function.) ?AUX2 (Movement type for 4CH. it's the same as MT-4S function.) ?Fail safe (power/ battery) ?Timer (lap/ interval/ down) ?Lap ?Logger ?20 model memory (when used with SD card, 250 models is available.) ?Model Name (12 letters) ?Model (Select/ Clear/ Copy) ?Direct Model Select ?Trim Type (Center/ parallel) ?Throttle Type (70:30 / 50:50) ?RF MODE Setting (FH4T/FH3) ?Response Mode Setting (NOR/SHR/SSR)* ?Key Assign(SW/TRIM/DIAL/LEVER)
?AUX TYPE SETTING
·CODE AUX (w/ Naming function)
·STEP AUX (Step 1 - 100)
·POINT AUX (2 - 6 point)
·4WS MIXING (Front/Rear/Normal(coordinate phase)/Reverse(opposite phase))
·MOA MIXING (FWD/4WD/RWD)
·AUX MIXING (ST MIXING/ TH MIXING)
?Buzzer(scale/volume) ?Transmitter Battery Alarm ?LCD Contrast ?Volume Adjustment ?Mechanical Rudder Angle ?Small Grip Pad
?Compatible Receivers:
*Telemetry-compatible(RX-482, RX-472, RX-47T, RX-462, RX-461)
*Non-Telemetry-compatible(RX-481, RX-481WP, RX-471 Dual ID, RX-471W, RX-471, RX-451R, RX-451, RX-381, RX-380)

[SSL(SANWA Synchronized Link) Sysytem]
SANWA NEW SSL SYSTEM
?When used with compatible RX-472, RX-482, Super Vortex Series, SV-Plus Series, the setting of ESC etc. by Transmitter is available through SSL functions while driving.
?Since the setting can be done without the stop of car, the detailed adjustment in accordance with Race conditions
is available without interruption of Intervals and the change of machine conditions.
[Response of Telemetry System]
?It is often said that telemetry system reduce response speed. However, SANWA Original Data Processing and Algorithm Design makes Telemetry possible without response speed reduction.
Our Excellent Telemetry System has no response speed reduction.
?With our telemetry system, the precious race data will help the next race setting and driving.
[Response Mode]
?Please do not use Analog Servo for SHR mode or SSR mode.
If analog servo is used for SHR mode or SSR mode, the servo will be broken and will not work.
Digital servo (SRG series, Digital ERG series, SDX series) can be used both for NOR mode and SHR mode.
?SSR mode can be used only by SRG series servo.
?In SHR or SSR mode, BL-FORCE, BL-SPORT, F3300, SBL-02 and SBL-03CR do not work.
Please use NOR mode for the above ESC.
?About Version Update Program
?How to update firmware?
1 Please download the version update program from the below link;
?Version Up Program(zip)
Decompress the file.
2 Insert micro SD card into your PC.
3 Make the new folder named "MT-44" in the root of micro SD card.
4 Make the new folder named "update" in the above "MT-44" folder.
5 Copy and Paste the decompressed file "MT-44.prg" into the above "update" folder.
6 Remove micro SD card from your PC and insert it into MT-44 with MT-44 off.
7 Power on MT-44. And update the software as the following process.
SYSTEM > FIRMWARE > FIRMWARE [UPDATE]
In the firmware menu, both the current version and new version will be displayed.
*After updating the firmware, you cannot go back to the old firmware.


Sanwa MT-5 Radio + RX-493i Receiver

Features:

• ONLY Compatible RF with FH5
• Compatible Response Mode with SUR, SSR, SHR, NOR
• SSL CODE5/CODE10 Function
• Quick Setup Wizard
• Full Adjustable Trigger
• Adjustable Steering and Throttle Tension
• INDICATOR FUNCTION can show Receiver Signal Strength and Packet Delivery Ratio
• Weight: 382 g
• Power source: AAA Battery x 3

One of the outstanding feature of MT-5 is the indicator function which can check signal receiving condition with using RX-493i. The conditions can be used for checking device and correct receiver placement.

Features:

• High Resolution RF mode: FH5
• Sanwa Ultra Response (SUR) Mode
• SSL Code 10 Compatible
• Only Compatible RF with FH5
• Compatible with RX-491, 492, 492i, 493, 493i
• Indicator function is compatible with only MT-5
• Compatible Response Mode with SUR, SSR, SHR, NOR
• SSL CODE 10 function (Super Vortex Gen2 PRO, PGS servos)
• CODE 5 function cannot be used for MT-R
• Quick Setup Wizard
• RX-493i receiver included

Specifications:

SANWA MT-S Radio Set with RX482 - 101A31971A

SANWA MX-6 Radio Set with RX-391W - 101A32571A

Sanwa Neck Strap

SANWA RECEIVER CASE SET RX-471

SANWA RECEIVER CASE SET RX-472

RX-391W Receiver

●2.4GHz FH-E 3 ch (SPREAD SPECTRUM COMMUNICATION SYSTEM)
●Waterproof

※RX-391W is not compatible with telemetry function.

Frequency 2.4GHz FH-E
Nominal Input Voltage 4.8～6.0Ｖ
Weight 12.7 g
Channel 3 ch
Dimensions 31.9 x 26.5 x 14.5 mm
Compatible radio MX-6

Sanwa RX-451/451R Receiver Case Set

Sanwa RX-471 Receiver Case Set

This is the Sanwa RX-471W 2.4Ghz FHSS-4 Waterproof 4-Channel Receiver. The RX-471W Super Response waterproof receiver is compatible with Sanwa/Airtronics 2.4GHz FH3 and FH4T transmitters, such as the M12, MT-4S, MT-4, MX-3X, M11X, EXZES X and others. This 4-channel receiver features an extremely low latency time and high frame rate, which makes you feel more connected to your model than ever. Combined with Sanwa's specially made Super Response servos, the RX-471W Super Response receiver will give you reaction speeds like never before!

Features:

·         Compatible with all Sanwa and Airtronics 2.4GHz FH3 and FH4T Surface Transmitters

·         Waterproof (IPX4 Spec)

·         Extremely Low Latency Time and High Frame Rate

·         Compatible with Sanwa Super Response Servos

·         High Voltage - Compatible with 2S Li-Po Receiver Battery

·         Small and Lightweight

·         Finger Accessible Bind Button

·         Supports Receiver Battery Fail Safe Monitoring

Sanwa RX-472 (2.4GHz, 4-Channel, FHSS-4, SSL) Telemetry Receiver

The RX-472 is a fast and extremely lightweight 4-channel receiver. It works in the 2.4GHz FHSS4/FHSS3 spectrum and supports Sanwa Super Response (SSR).

The RX-472 receiver features the new Sanwa Synchronized Link (SSL) function of the Sanwa M12 and Exzes-Z transmitters.

Sanwa’s Super Vortex Zero Brushless Speed Control can be programmed directly from the transmitter.

Compatible to M12, Exzes-Z and MT-4 (no SSL).

Specifications:

Sanwa RX-481 Receiver Case Set

Sanwa RX-481WP Waterproof 2.4GHz 4-Channel FHSS-4 Receiver. The antenna is integrated in the case and the receiver is very small. Perfect when bashing on wet and dirty grounds wit offroad cars and as well for racing onroad with your rain car!

Features:

• 2.4GHz FHSS4/FHSS3 Spread Spectrum System 4CH
• Super Response SSR Mode-Compatible
• Waterproof (IPX4)

Specifications:

• Frequency: 2.4GHz FHSS4 / FHSS3
• Channel: 4CH
• Nominal Input Voltage: 3.7-7.4V
• Dimensions: 21.4x27.6x29.4mm
• Weight: 10.7g
• Compatible radio: M17, M12S, M12, M12RS, EXZES ZZ, EXZES Z, M11X, EXZES X, MT-4S, MT-4, MT-S, MX-3X, GEMINI X

Sanwa RX-482 Receiver Case Set

RX-482 Telemetry/SSL Receiver

- 2.4GHz FHSS4 Spread spectrum system 4ch
- SSL support (ESC: Super Vortex Series etc.)
- Built-in Antenna
- Sanwa Super Response (SSR) support

Frequency - 2.4GHz FHSS4
Channel - 4ch
Nominal Input Voltage - 3.7V~7.4V
Dimensions - 18.2x24.4x27.1mm
Weight - 7.1g
Compatible radio - M12, Exzes Z, MT-4S, MT-4(No SSL support)

SANWA RX-491 Receiver

- Compact receiver
- Waterproof
- Plug in Bind
- Short Antenna

- 2.4 GHz FHSS5 Spread Spectrum System 4ch
- Compatible with Telemetry
*Cannot connect RPM sensor and Temperature sensor
To measure RPM and Temperature is only
combine with SUPER VORTEX series
- Compatible with SSL (SUPER VORTEX Series, etc...)
- Ultra Response Mode (SUR)
- Waterproof
- The smallest and most light receiver in the class

Frequency - 2.4 GHz FHSS5
Channel - 4ch
Nominal Input Voltage - 3.7~7.4 V
Dimensions - 23.0 x 23.2 x 14.0 mm
Weight - 5.3g
Compatible radio - M17

Sanwa RX-492 (FH5/FH5U, SXR Response) Waterproof Telemetry Receiver w/Internal Antenna

Sanwa RX-492 Receiver Case Set

The Sanwa RX-493 M17 2.4GHz 4-Channel FHSS5 SRX/SSL Receiver is a FH5/FH5U and SXR response mode compatible receiver that features a traditional 100mm coaxial antenna with an integrated antenna tube mount, ensuring stable performance in about any situation compared to built-in antenna receiver units. Furthermore the high-voltage compatible receiver is waterproof, comparable to IPX4, and it supports Sanwa’s SSL function. The unit measures 26×23.2x14mm, it weighs in at 6.2g and is designed to work exclusively with the Sanwa M17 radio system.

Features:

• 2.4 GHz FHSS5 Spread Spectrum System
• Compatible with M17 transmitter
• 4 channels
• Telemetry compatible
• SSL compatible with
• Ultra Response Mode (SUR)
• Extreme Response Mode (SXR)
• Waterproof
• The smallest and lightest receiver in the class

Specifications:

• Frequency: 2.4 GHz FHSS5
• Channel: 4ch
• Nominal Input Voltage: 3.7~7.4 V
• Dimensions:26.0 x 23.2 x 14.0 mm
• Weight: 6.2 g
• Compatible radio: only M17 because of FH5 mode

Sanwa RX-493 Receiver Case Set

Features:

• Compatible with FH5/FH5U
• Size: 26.0 x 23.2 x 14.0 mm
• Weight: 6.2 g
• Water Proof (Same as IPX4)
• Compatible receiver with INDICATOR FUNCTION.

One of the outstanding feature of MT-5 is the indicator function which can check signal receiving condition with using RX-493i. The conditions can be used for checking device and correct receiver placement.

Features:

• Compatible with FH5/FH5U (M17/MT-5/MT-R)
• Compatible with SXR Response Mode
• Compatible with SSL Function
• Voltage: 4.8 -7.4 V
• Water Proof (as IPX4)
• Antenna pipe
• COAXIAL ANTENNA with Antenna Pipe
• *MT-5 indictor function is not compatible

Specifications:

Sanwa Steering Wheel Foam Grip

Sanwa Transmitter Grip Tape

SANWA TX Antenna - 2.4GHz - 107A30743A

Fits - M11X, Exzes-X

Sanwa Wide Steering Wheel Foam Grip

roduct information "SRT Capacitor for BEC 2200uf/10V"

Whenever voltage dips and peaks are a problem, this capacitor with 2200uF/10V is the solution. It improves the voltage stability of the receiver and prevents short-term voltage drops that can be caused, for example, by peak loads from high-quality servos. The stored energy is used to bridge such drops. With reverse currents from servos, however, so-called voltage peaks can sometimes occur. The capacitor can filter out and cushion these high-frequency signals just as easily.

The capacitor is plugged into a free receiver slot.

T-Work's Sanwa M17 Screen Protector

T-Work's Sanwa MT-5/MT-44 Screen Protector

FEATURES

Description of the channels (the transmitter has 4 channels which are assigned as follows):
CH1: Steering wheel
CH2: Throttle lever (Trigger)

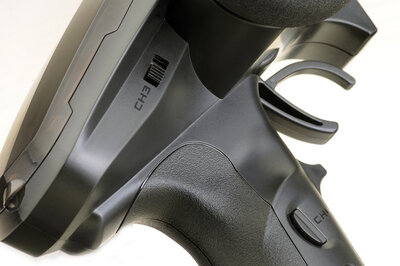

CH3: 3-position toggle switch

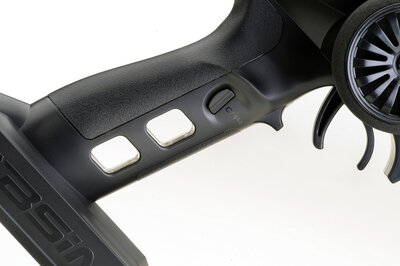

CH4: Push button

Reverse function (REV): This function can be used to set the direction of rotation of the steering servo/motor.

Trimming (TRIM): Adjustment of the straight run and throttle neutral position.

Dual Rate function (D/R): The steering angle and also the motor rotation power can be increased or reduced by operating this rotary knobs.

Failsafe function: This function determines what the receiver should pass on if the signal to the transmitter is lost (e.g. emergency braking).

Beginner modus: This function is intended for newcomers. In this mode the motor power is automatically reduced to 50%.

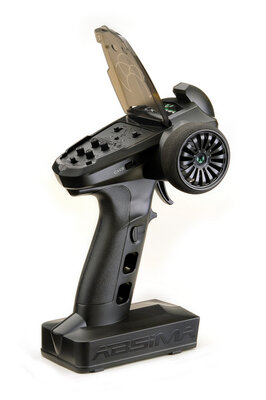

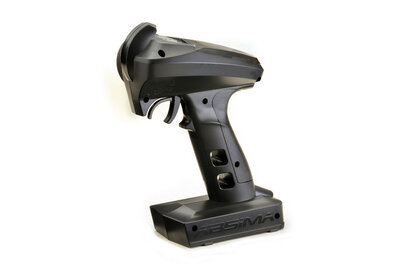

SPECIFIKATION

Radio CR4S:
Channels: 4
2.4GHz Protocol: ANT
Distance: >150m
Battery (not included): 4*AAA 1.5 - 6V DC
Low V Warning: <4.2V (only NiMH)
Using LiPo TX battery possible: Yes (only LiPos with built-in low V protection)
Charging interface: No
Antenna type: Single antenne
Temperatur range: -10°C - +60°C
Size: 118*73*145 mm
Weight: ca. 130 g

Receiver R4WP Micro (2020016):
Channels: 4
Antenna type: external single antenna
Waterproof: Yes
Power: 3.5-8.4V
Failsafe: Yes (in connection with radio)
Temperatur range: -10°C - +60°C
Weight: 5 g
Size: 30.2*18.0*13.0 mm


SET INCLUDES

1* 4-Channel radio "CR4S"
1* 4-Channel receiver
1* Antenna tube
1* Manual (DE/ENG/FR)

4-channel receiver "R4WP" with internal antenna suitable for "CR4S" 2.4Ghz remote controller.

This waterproof receiver uses the new AFHDS 2.4GHz ANT frequency technology and has a very compact design with a size of 22.6*20.6*25.5mm.

Specification:

Channels: 4
2.4GHz Protocol: ANT
Suitable for: CR4S and other remote controllers with ANT technology
Distance: >150m
Antenna type: buildt-in
Waterproof: Yes
Power: 3.5-8.4V
Failsafe: Yes (in combination with remote control)
Temperature range: -10°C - +60°C
Weight: 6g
Dimensions: 22.6*20.6*25.5mm

Vigor High Grip Steering Pad for Sanwa & Futaba (Dark Blue)

Vigor High Grip Steering Pad for Sanwa & Futaba (Pink)

• Universele hardcase geschikt voor bijna alle wielradio's
• Inclusief universele schuiminleg
• Afmeting: 350x250x150 mm
• Binnenmaat: 320x220x130 mm
• Inclusief carying band
