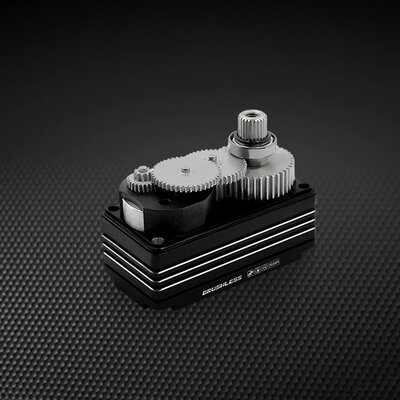

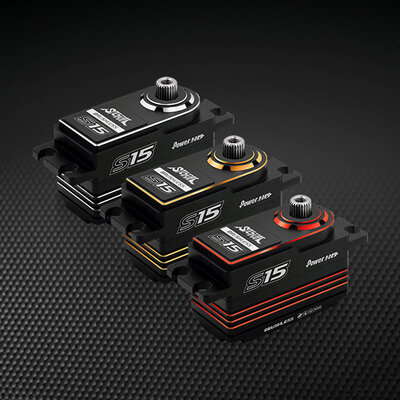

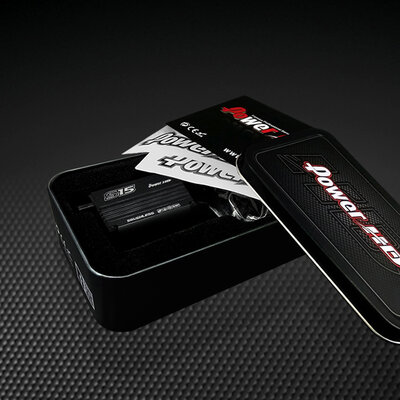

This Digital Brushless Low Profile Servo from Power HD with the name “S15” is one of the most valuable servos on the market right now. It has all you need to drive your racecar to the win. The full machined aluminum case makes it very durable and the torque and speed of this servo is really outstanding. For the design of different cars you can choose the S15 with silver, golden or red color accents to look even better in your car! Check out the features of the S15 to see what it`s all about!

Features:

• Torque(6.0V): 11.5 kg-cm
• Torque(7.4V): 15.0 kg-cm
• Speed: 0.072 sec (6.0V) ¦ 0.060 sec (7.4V)
• Operating Voltage:6.0 ~ 8.4 DC Volts
• Weight: 52.0 g
• Bearing Type:Ball
• Bearing x 2
• Motor Type:Digital Brushless Motor
• Gear Type:Titan & Aluminum
• Size:41.0 x 20.0 x 26 mm
• Receiver wire: 80mm length, black, JR Connector
• Servohorn: 25 teeht (not included)

PowerHD Black Colour R12S Servo - PHD-R12S

Perfecte servo voor 1/10 Toerwagen 1/10 Buggy M-Chassis of F1 met een prima prijs!

Kenmerken:
Koppel (6,0 V): 9,0 kg-cm (125,0 oz / in) Koppel (7,4 V): 12,0 kg-cm (166,6 oz / in)
Snelheid: 0,07 sec (6,0 V) | 0,06 sec (7,4 V)
Bedrijfsspanning: 6,0 ~ 8,4 DC Volts Gewicht: 41,0 g (1,45 oz)
Type lager: kogellager x 2
Motortype: kernloze motor
Versnellingstype: Titan en aluminium
Bedrijfstemperatuur: -20? ~ 60?
Werkfrequentie: 1520μs / 333hz
Grootte: 41.0 x 20.0 x 26.4 mm (1.61 x 0.79 x 1.04 in)
Servohorn: 25 tands (niet inbegrepen)

PowerHD Coreless High Voltage 1/12 Servo R6 - PHD-R6

Perfect voor 1/12 Auto's zoals XRAY X12, Associated 12R6 etc.

• Torque(6.0V): 6.5 kg-cm (90.26 oz/in)
• Torque(7.4V): 7.5 kg-cm (104.0 oz/in)
• Speed: 0.09 sec (6.0V) │ 0.08 sec (7.4V)
• Operating Voltage：6.0 ~ 8.4 DC Volts
• Weight: 28.5 g (1.01 oz)
• Bearing Type: Ball Bearing x 2
• Motor Type：Coreless Motor
• Gear Type：Copper & Aluminum
• Operating Temperature：-20℃~60℃
• Working frequence：1520μs / 333hz
• Size：35.0 x 15.1 x 29.5 mm ( 1.38 x 0.59 x 1.136 in)

- Trekkracht 4,8V: 3,5 kg-cm
- Trekkracht 6,0V: 4,4 kg-cm
- Snelheid 4,8V: 0,14 sec.
- Snelheid 6,0V: 0,12 sec
- Voltage: 4,8-6,0V
- Gewicht: 43 gr
- Kogellager: 2x
- Motor type: DC motor
- Tandwielen: Kunststof
- Afmetingen: 40,7 x 20,5 x 39,5 mm

Power HD-1501MG Analog Servo
Koppel (4,8 V): 15,5 kg-cm (215,3 oz / in)
Koppel (6,0 V): 17,0 kg-cm (236,1 oz / in)
Snelheid: 0,16 sec (4,8 V) │ 0,14 sec (6,0 V)
Bedrijfsspanning: 4.8 ~ 6.0 DC Volts
Gewicht: 63,0 g (2,22 oz)
Type lager: kogellager x 2
Motortype: gelijkstroommotor
Versnellingstype: koper
Bedrijfstemperatuur: -20 ℃ ~ 60 ℃
Werkfrequentie: 1520μs / 50hz
Grootte: 40,7 x 20,5 x 39,5 mm (1,60 x 0,81 x 1,56 in)

Specificaties Power HD LF-13MG
- Trekkracht 4,8V: 10,5 kg-cm
- Trekkracht 6,6V: 13,0 kg-cm
- Snelheid 4,8V: 0,15 sec.
- Snelheid 6,6V: 0,12 sec
- Voltage: 4,8-6,6V
- Gewicht: 60 gr
- Kogellager: 2x
- Motor type: DC motor
- Tandwielen: Koper / Aluminium
- Frequentie: 1520μs/333hz
- Afmetingen: 40,7 x 20,5 x 39,5 mm

Specificaties Power HD LF20MG
– Trekkracht 4,8V: 16,5 kg-cm
– Trekkracht 6,6V: 20,0 kg-cm
– Snelheid 4,8V: 0,18 sec
– Snelheid 6,6V: 0,16 sec
– Voltage: 4,8-6,6V
– Gewicht: 60 gr
– Kogellagers: 2
– Motor type: DC motor
– Tandwielen: koper / Aluminium
– Afmetingen: 40,7×20,5×39,5 mm
– Vertanding hevel: 25 tands

Torque(4.8V): 16.5 kg-cm (229.1 oz/in)
Torque(6.0V): 20.0 kg-cm (277.7 oz/in)
Speed: 0.18 sec (4.8V) │ 0.16 sec (6.6V)
Operating Voltage：4.8 ~ 6.6 DC Volts
Weight: 60 g (2.12 oz)
Bearing Type：Ball Bearing x 2
Motor Type：DC Motor
Gear Type：Copper & Aluminum
Operating Temperature：-20℃~60℃
Working frequence：1520μs / 333hz
Size：40.7 x 20.5 x 39.5 mm ( 1.60 x 0.80 x 1.55 in)

Xray ALU PINION GEAR - HARD COATED 24T / 48, X365724

The new S25 servo from Power HD is a true multi talent and is perfect to use in a lot of different racing classes. The brushless servo is very strong and reliable and manufactured in the well-known Power HD quality! The S25 is the servo of choice when you need a very fast steering servo for your car!

Features:

• Torque (6.0V): 21.5 kg-cm (298.6 oz/in)
• Torque (7.4V): 25.0 kg-cm (347.2 oz/in)
• Torque (8.4V): 30.0 kg-cm (416.6 oz/in)
• Speed: 0.075 sec (6.0V) ¦ 0.060 sec (7.4V) ¦
• Speed: 0.055 sec (8.4V)
• Operating Voltage: 6.0 ~ 8.4 DC Volts
• Weight: 75.0 g (2.65 oz)
• Bearing Type: Ball Bearing x 2
• Motor Type: Brushless Motor
• Gear Type: Titanium & Steel
• Operating Temperature: -20°~60°
• Working frequence: 1520µs / 333hz
• Size: 40.7 x 20.5 x 38.6mm
• Servohorn: 25 teeth

Power HD have introduced their budget-friendly new waterproof HV servo LW-25MG.  It makes use of a CNC-machined all-alloy case for improved durability, newly wiring outlet structure for enhanced waterproof function, having 36CM wire to compatible with Traxxas TRX-4 wiring.

It is usable with 6.0V to 8.4V input, offer a torque of up to 25kg-cm at a speed of down to 0.14s.

Specifications:

vos feature all-aluminium housings in a 2-tone anodising that is available with silver, red or gold-colour details while the geartrains are made up using high-quality aluminium and steel gears. Japanese Noble potentiometers ensure highest possible precision and an updated PCB supports SSR and SUR modes. The line includes the S15 low-profile and S25 and S35 standard size servos all of which are usable with 6V to 8.4V input.

Specifications:

It features an all-aluminium case and distinctive laser pattern on the bottom, durable titanium and steel gears, a powerful coreless motor and it pulls up to 12.5kg-cm of torque at a speed of 0.059s, weighs only 55g, support SSR mode.

With receiver wire leaving the case on the opposite side of the output gear–and thus on the inside of the chassis in most cases – wiring can be carried out much neater compared to standard servos that always have the wire on the “outside” of the chassis. Therefore the servo is the ideal choice especially for 1/10th touring cars and drift cars, as it make for more tidy and safer wiring.

Specifications:

Power HD S15-X Servo for XRAY X4

The PowerHD S15 Servo is now available with a “Direct Mount” for the Xray X4 touring car!

This Digital Brushless Low Profile Servo from Power HD with the name “S15” is one of  the most valuable servos on the market right now. It has all you need to drive your racecar to the win. The full machined aluminum case makes it very durable, and the torque and speed of this servo is really outstanding. Check out the features of the S15 to see what it`s all about!

Features of the PowerHD S15 Servo:

·         Power HD S15 Servo with “Direct Mount” for the Xray X4
·         Torque(6.0V): 11.5 kg-cm
·         Torque(7.4V): 15.0 kg-cm
·         Speed: 0.072 sec (6.0V) │ 0.060 sec (7.4V)
·         Operating Voltage：6.0 ~ 8.4 DC Volts
·         Weight: 52.0 g
·         Bearing Type：Ball Bearing x 2
·         Motor Type：Digital Brushless Motor
·         Gear Type：Titan & Aluminum
·         Size：41.0 x 20.0 x 26 mm
·         Receiver wire: 80mm length, black, JR Connector
·         Servohorn: 25 teeht (not included)

Torque(6.0V): 13.5 kg-cm ( 187.5 oz/in)
(7.4V): 16.5 kg-cm ( 229.1 oz/in)
(8.4V): 18.0 kg-cm ( 250.0 oz/in)Speed0.10 sec (6.0V)
0.095 sec (7.4V)
0.085 sec (8.4V)Operating Voltage6.0 ~ 8.4 DC VoltsWeight55.0 g (1.94 oz)Bearing TypeBall Bearing x 2Motor TypeCoreless MotorGear TypeTitanium & SteelOperating Temperature-20℃~60℃Working frequence1520μs / 333hzSize41.0 x 20.0 x 26.3 mm (1.61 x 0.79 x 1.04 in)

Specificaties Power HD PHD-LW-13MG
- Trekkracht 4,8V: 16 kg-cm
- Trekkracht 6,0V: 18 kg-cm
- Snelheid 4,8V: 0,14 sec.
- Snelheid 6,0V: 0,12 sec
- Voltage: 4,8-6,0V
- Gewicht: 56 gram
- Kogellager: 2x
- Motor type: DC motor
- Tandwielen: Koper / Aluminium
- Frequentie: 1520μs/333hz
- Afmetingen: 40,7 x 20,5 x 39,5 mm
- Waterproof

Specificaties Power HD PHD-LW-13MG
- Trekkracht 4,8V: 10,5 kg-cm
- Trekkracht 6,6V: 13,0 kg-cm
- Snelheid 4,8V: 0,15 sec.
- Snelheid 6,6V: 0,12 sec
- Voltage: 4,8-6,6V
- Gewicht: 60 gr
- Kogellager: 2x
- Motor type: DC motor
- Tandwielen: Koper / Aluminium
- Frequentie: 1520μs/333hz
- Afmetingen: 40,7 x 20,5 x 39,5 mm
- Waterproof

Specificaties Power HD LW30MG
- Trekkracht 4,8V: 18,0 kg
- Trekkracht 6,0V: 23,5 kg
- Trekkracht 7,2V: 30,0 kg
- Snelheid 4,8V: 0,18 sec.
- Snelheid 6,0V: 0,16 sec
- Snelheid 7,2V: 0,14 sec
- Voltage: 4,8-7,2V
- Gewicht: 62 gram
- Kogellager: 2x
- Motor type: DC motor
- Tandwielen: Koper / Aluminium
- Frequentie: 1520μs/333hz
- Afmetingen: 40,5 x 20,5 x 39,3 mm
- Waterproof

Power HD Multi-function Program Box for S15/S25/S35/S50 and D12/D15 Servos

Specifications:
