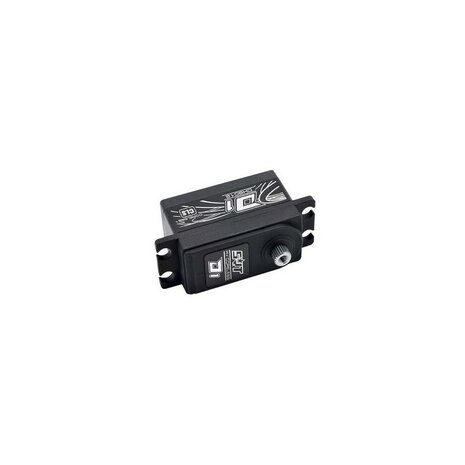

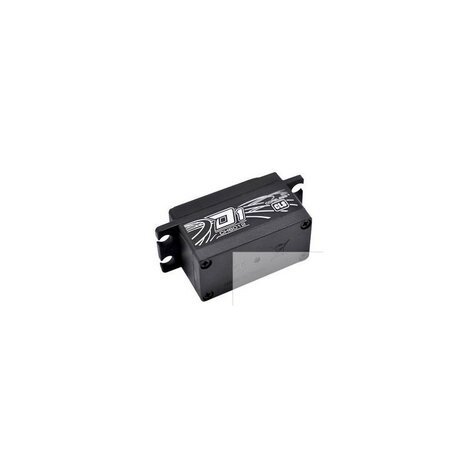

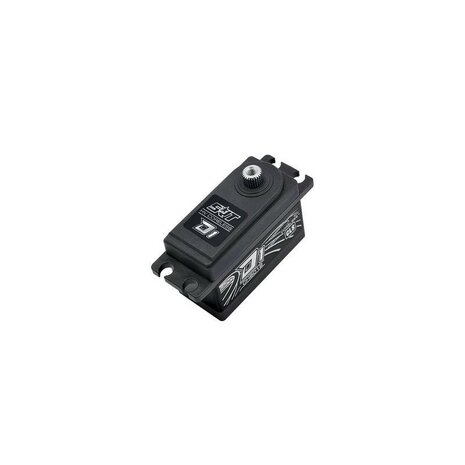

SRT Servo CH6012 Low Profile Coreless HV 11.0kg/0.06sec @7.4V

0 Review | Review toevoegen

Specifications Type: Digital Bearing: Dual Motor Type: Coreless Gear Type: Metal Gear Material: Titanium & Alu control system: pulse width control working frequence: 1520μs / 330hz operating voltag

Standaard levertijd

: enkele werkdagen

€ 79,95

Prijs per stuk

Voorraad :

Aantal:

Bestellen

Op verlanglijst

Omschrijving
Reviews

Specifications

Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-7.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.07 sec/60 degrees at no load
operating speed (7.4v): 0.06 sec/60 degrees at no load
stall torque (6.0v): 9.0kg.cm (125.0 oz/in)
stall torque (7.4v): 12.0kg.cm (166.6 oz/in)
potentiometer drive: direct drive

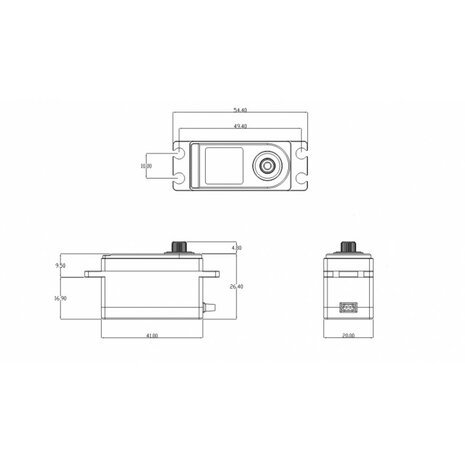

dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
weight: 41.0g (1.45 oz)
connector wire length: jr 180 mm

Datasheet

Manufacturer : SRT
