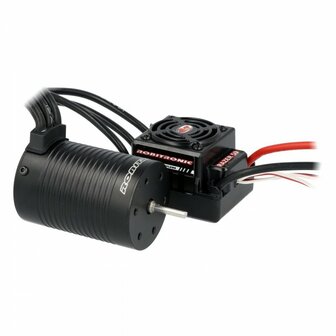

Robitronic Razer ten Brushless Combo 50A 3652 3000kV

Robitronic Razer ten Brushless Combo 50A 3652 3000kV
Robitronic Razer ten Brushless Combo 50A 3652 3000kV
0 Review | Review toevoegen
Razer ten 50A ESC Fully waterproof and dustproof ON / OFF switch with setup button S-BEC with 6V and 3A peak current Plug and Play, battery and motor plug already soldered Multiple protections: unde
€ 72,50
€ 69,95
Prijs per stuk

Voorraad :

Aantal:
Bestellen

Op verlanglijst

Razer ten 50A ESC


  • Fully waterproof and dustproof
  • ON / OFF switch with setup button
  • S-BEC with 6V and 3A peak current
  • Plug and Play, battery and motor plug already soldered
  • Multiple protections: undervoltage shutdown, thermal protection and protection against signal loss.
  • Simple programming via set button
  • Separate programming port, easy connection of the LED program card (optional)


Razer ten 3652 3000kV Motor


  • 4-pole rotor design for high torque and fast response
  • CNC machined, high-strength aluminum housing for optimum heat dissipation
  • Motor winding made of pure, double insulated copper wire
  • Precision ball bearing for best running smoothness and service life
  • Highly flexible silicone connection cable with soldered 4mm plugs
  • High strength and polished 3.17 mm rotor shaft made of steel
Specifications

ESC :

Constant/Peak current: 50A / 300A
Type : Sensorless
Motor limit:

2s Onroad: 3650 Motor, >=8T
2s Offroad: 3650 Motor, >=11T
3s Onroad: 3650 Motor, >=11T
3s Offroad: 3650 Motor, >=14T

Internal resistance: 0.001 Ohm
LiPo / NiMH cells: 2-3s LiPo / 6-9 cells NiMH
S-BEC: 6V/3A
Programmation port : Yes
Dimensions : 48.5x38x32mm
Weight : 90g
Usage : 1/10 OnRoad and Offroad



  • Battery connector : T-Plug
  • Motor connectors : 4mm bullet



Motor :

  • Kv :3000
  • LiPo cells : 2S-3S
  • Poles : 4
  • Shaft : 3.17x15mm
  • Ext. diameter : 35 mm
  • Length : 52 mm
  • Weight : 198 g
  • Usage : 1/10 On Road, Buggy, Light SC, Truck, MT



Datasheet
  • Manufacturer : Robitronic
