The Raytronic C30 + 300W was designed to offer an intelligent pocket charger with high performance and very simple operation. RAYTRONIC C30 + allows charging and discharging common types of cells (NiCd, NiMH, LiPo, LiHV Li-ion, LiFe, Pb), in addition it is equipped with a built-in six-channel balancer, which ensures safe and comfortable charging of lithium batteries. Measurement of voltage and internal resistance of individual cells (for lithium batteries) is a matter of course.
Features:

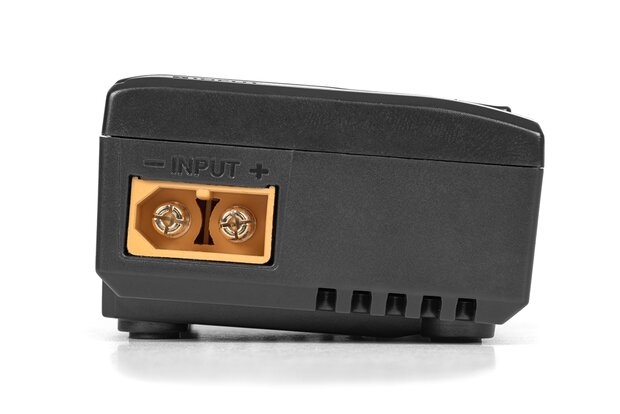

- Input supply voltage 10 - 26 V DC (socket XT60)
- For charging and discharging 1 - 16 NiCd / NiMH cells, 1 - 6 Li-ion / LiPo / LiHV / LiFe cells or 2- 20 V lead-acid batteries
- Adjustable charging current (0.1 A - 12.0 A)
- Adjustable discharge current (0.1 A - 3.0 A)
- Max. power for charging 300 W, for discharging 5 W
- Termination of charging using delta-peak automation for NiCd and NiMH batteries
- Lithium and Pb batteries are charged using the "constant current / constant voltage" method
- Adjustable delta-peak detection sensitivity for NiCd and NiMH batteries
- Adjustable end voltage for charging and discharging for lithium batteries
- Repeated cyclic operation of charging / discharging or discharging / charging for NiCd and NiMH batteries, up to 5 cycles
- Four charging modes for lithium batteries - normal charging, fast charging, balancing charging and storage charging / discharging
- Stop charging when the set time or the supplied charge is exceeded.
- Memory for 5 charging / discharging programs.
- Measurement of the total voltage of the set and individual cells (for lithium batteries)
- Measurement of the total internal resistance of the set and individual cells (for lithium batteries)

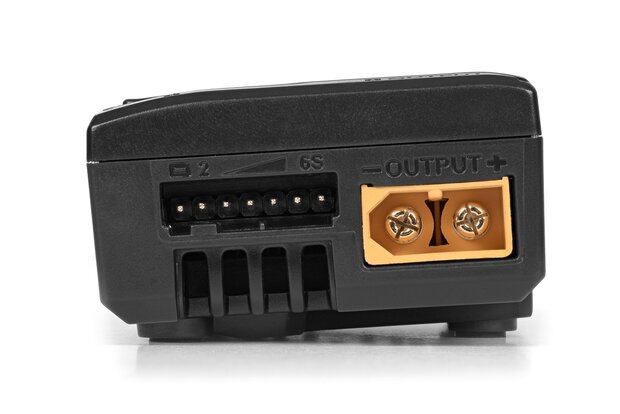

- The XT60 power output socket and the JST-XH 2-6S universal balancer socket allow you to connect the rechargeable battery directly without the need for a charging cable and balancer adapter (if the kit is equipped with an XT60 power connector and a JST-XH service connector)

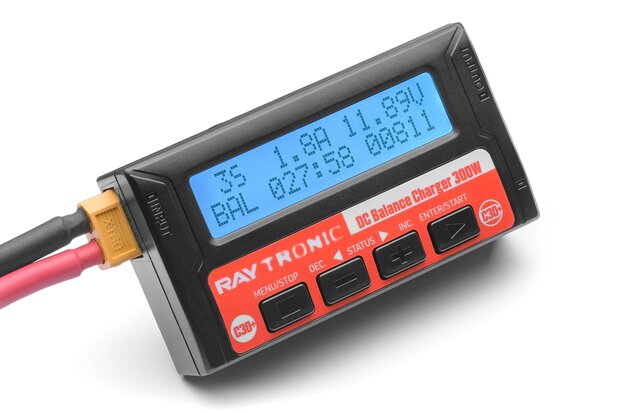

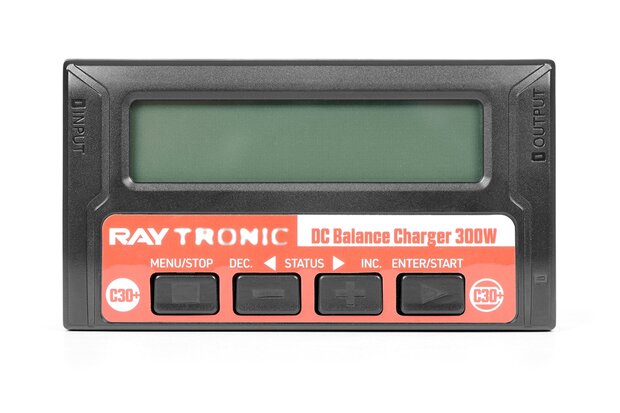

- Two-line backlit LCD display with simple and clear menu and display of parameters during charging / discharging
- A number of warning text messages contribute to safe operation - incorrect input voltage, incorrect connection, unsuitable battery or its condition, incorrect polarity at the output
- Reverse polarity and short circuit protection at the output / li>
- Compact plastic case, small dimensions
- Built-in fan for forced cooling
Specifications:
Input voltage [V] |
10 - 26 |
Charging current [A] |
0.1 - 12 |
Discharge current [A] |
0.1 - 3 |
Number of channels |
1 |
NiCd |
1 - 16 |
NiMH |
1 - 16 |
Li-Pol |
1 - 6 |
Li-Ion |
1 - 6 |
Li-Fe |
1 - 6 |
Li-HV |
1 - 6 |
Pb |
1 - 10 |
Balancer |
Yes |
Charging power [W] |
300 |
Discharge power [W] |
5 |
Balancer current [A] |
1 |
Length [mm] |
87.5 |
Width [mm] |
48.5 |
Height [mm] |
30 |
Weight [g] |
95 |
