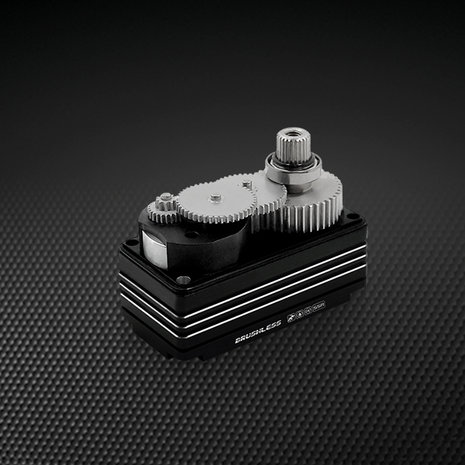

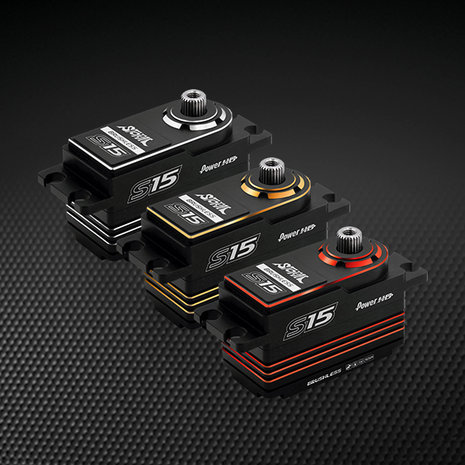

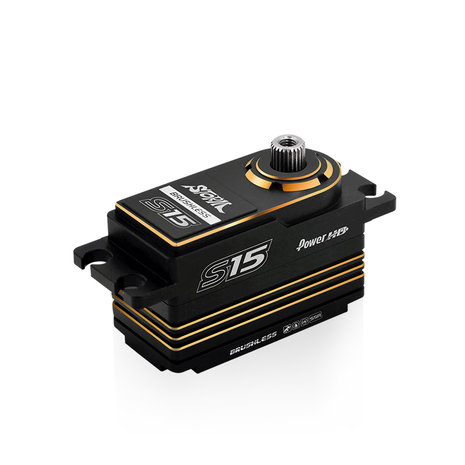

vos feature all-aluminium housings in a 2-tone anodising that is available with silver, red or gold-colour details while the geartrains are made up using high-quality aluminium and steel gears. Japanese Noble potentiometers ensure highest possible precision and an updated PCB supports SSR and SUR modes. The line includes the S15 low-profile and S25 and S35 standard size servos all of which are usable with 6V to 8.4V input.
Specifications:
Torque(6.0V) |
11.5 kg-cm (159.7 oz/in) |
Torque(7.4V) |
15.0 kg-cm (208.3 oz/in) |
Torque(8.4V) |
16.5 kg-cm (229.1 oz/in) |
Speed |
0.072 sec (6.0V) │ 0.060 sec (7.4V) │ 0.050 sec (8.4V) |
Operating Voltage |
6.0 ~ 8.4 DC Volts |
Weight |
52.0 g (1.83 oz) |
Bearing Type |
Ball Bearing x 2 |
Motor Type |
Brushless Motor |
Gear Type |
Titanium & Steel |
Operating Temperature |
-20℃~60℃ |
Working frequence |
760μs / 333hz |
Size |
41.0 x 20.0 x 26.0 mm ( 1.61 x 0.79 x 1.02 in) |
