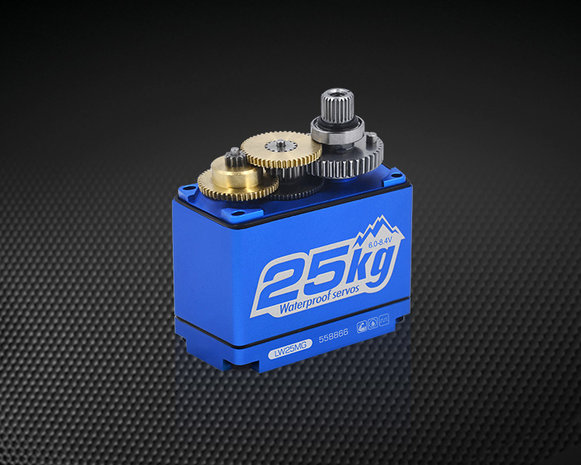

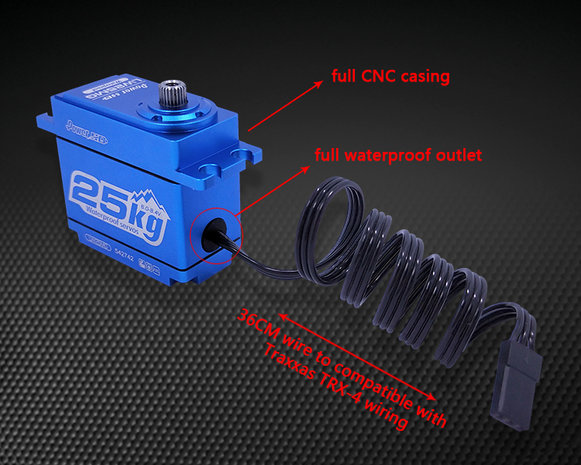

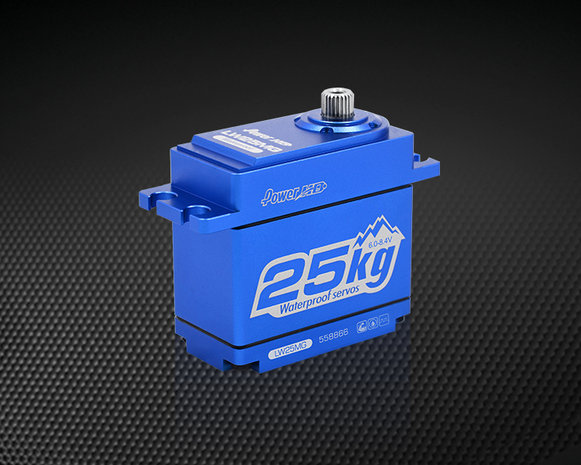

Power HD have introduced their budget-friendly new waterproof HV servo LW-25MG. It makes use of a CNC-machined all-alloy case for improved durability, newly wiring outlet structure for enhanced waterproof function, having 36CM wire to compatible with Traxxas TRX-4 wiring.
It is usable with 6.0V to 8.4V input, offer a torque of up to 25kg-cm at a speed of down to 0.14s.
Specifications:
Torque |
(6.0V): 23.0 kg-cm (319.4 oz/in)
(7.4V): 25.0 kg-cm (347.2 oz/in) |
Speed |
0.16 sec (6.0V)
0.14 sec (7.4V) |
Operating Voltage |
6.0 ~ 8.4 DC Volts |
Weight |
72 g (2.54 oz) |
Bearing Type |
Ball Bearing x 2 |
Motor Type |
DC Motor |
Gear Type |
Copper & Aluminum |
Operating Temperature |
-20℃~60℃ |
Working frequence |
1520μs / 333hz |
Size |
40.7 x 20.5 x 38.6 mm ( 1.60 x 0.81 x 1.52 in) |
