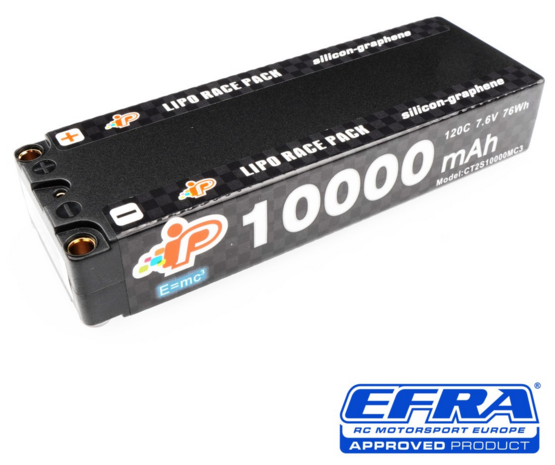

Intellect MC3 10000mAh 120C 7.6V Long Runtime Graphene Stick Pack LiHV
As the leading manufacturer of lithium batteries for RC car modeling, Intellect presents its new MC3 LiHV battery series.
The MC3 series is the further development of the PT2 Platinum series. It sets a new standard in the RC car scene.
Intellect has a suitable battery in its range for most RC car applications.
Specifications:
- Capacity: 10000mAh
- Nominal Voltage: 7.6V / 2S
- Discharge-Rate: 120C
- Cell Type: Silicon-Graphene Lithium-Polymer
- Length: 139mm
- Width: 47mm
- Height: 25.1mm
- Weight: 335g
- Plug: 5mm
Charging and storage instructions:
Never store your batteries fully charged and or fully discharged. We recommend to store the batteries at the nominal voltage of the battery. We also recommend to use the batteries regulary, if you don't go to the track, then cycle them once every two weeks. The batteries must not be stored in direct sunlight, this also includes your car during a hot summer day. For a long lifetime of your batteries we recommend a charging rate of 1C. A higher charging rate will decrease the lifetime of your battery significantly.
We recommend to use a lipo bag during charging your battery: RUDDOG HD LiPo Ladetasche (180x80x80mm)
Installation:
When installing you battery, we recommend not to place them directly next to your motor. Should it not be possible to place your battery at a different place we strongly recommend the use of a motor fan to keep your motor cool and so also your battery. If you are looking for a motor fan, check out the RUDDOG aluminium fans, which are available in a 30mm and 40mm variant: RUDDOG 30mm Aluminium HV High Speed Cooling Fan and RUDDOG 40mm Aluminium HV High Speed Cooling Fan

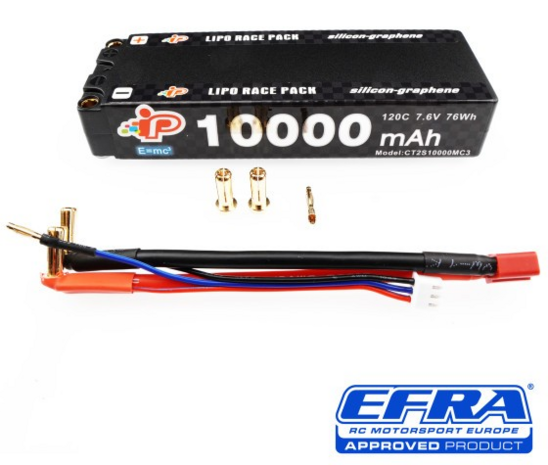

Intellect batteries come including battery plugs. If you need additional plugs, you can find a wide range of plugs here: Stecker - RUDDOG Distribution GmbH
Limited Warranty:
We offer the German legal warranty time on all of our batteries. Inproper usage or storage can void this warranty.
Please note:
We do not currently ship LiPo or LiHV batteries outside mainland Europe.
